SentroID

Handheld Diode Array NIR Spectrometers

Discover Sentronic

Overview

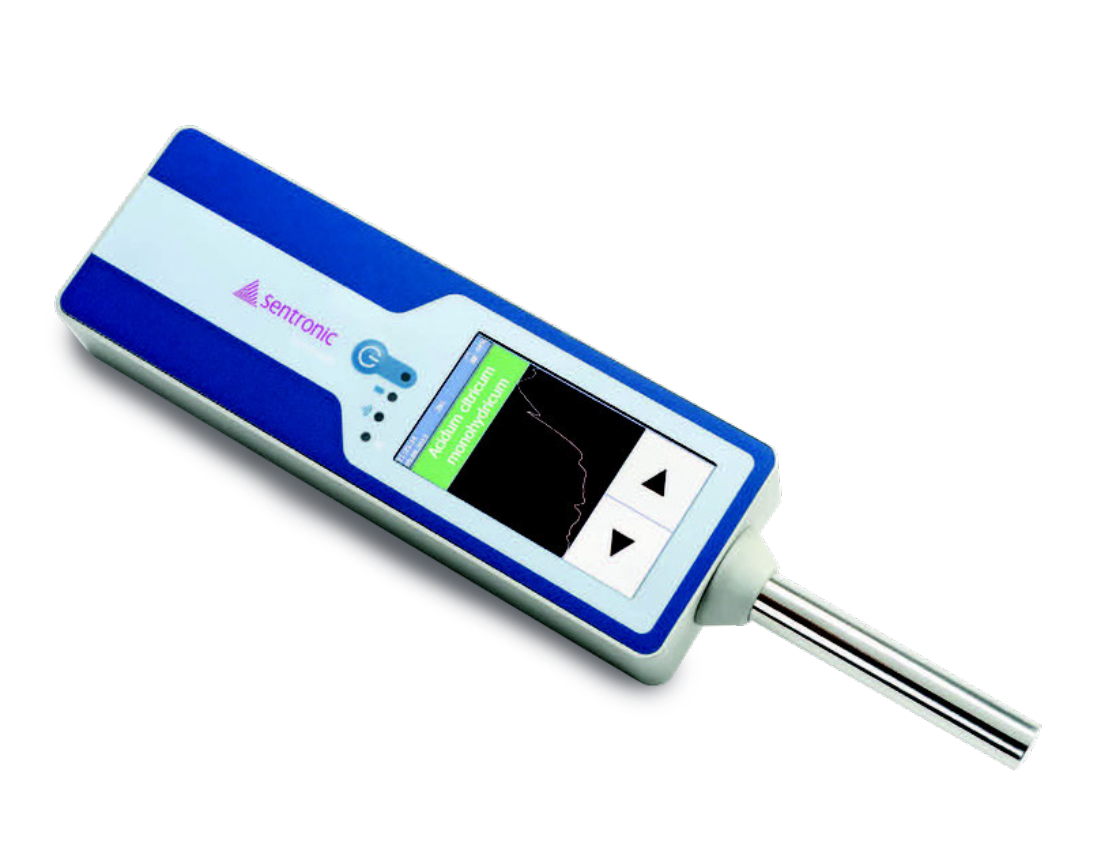

SentroID is compact handheld NIR spectrometer for mobile use. It is already on the market since about 2013. Up to now we have focussed on raw material identification for pharmacies mainly in Germany. This application is serviced by our partner WEPA Apothekenbedarf GmbH, a well-established service provider and partner for the pharmacy market.

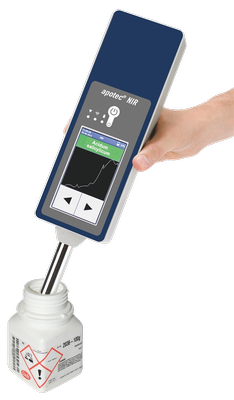

Learn more about the apotec NIR





It is our intention to widen the scope for the system, while we are currently developing a second generation instrument. Stay tuned to keep updated - in the meantime don't hesitate to contact us with any question you may have!

  • Immediate results
  • Measurement on minimal amount of materials or even directly in a container
  • Integrated camera for sample presentation
  • Internal standard for highest long term stability

Substance database

A substance database with more than 1000 pharmaceutical substances was developed since 2013 and is continuously maintained and updated for the German pharmacy market.

Technical Data

SentroID NIR
Technology Diode Array spectrometer
Wavelength range 900 - 1700nm
Wavelength aacuracy +-1nm over full specification range
System noise <50µAU RMS within 1150-2150nm at 1s measurement
Communication Wifi, USB2.0, Ethernet
Housing GmP friendly (smooth surfaces IP65 / NEMA4)
Dimensions 160 x 220 x 240mm
Operating conditions 10° … 30°C 10% … 90% relative humidity
